Ultra Case & Accessories

Ultra Case &
Accessories

The ULTRA CASE and ULTRA CASE Plus kits contain all the instruments required for the correct application of the “ULTRA” slabs in the different stages

Logo Ultra

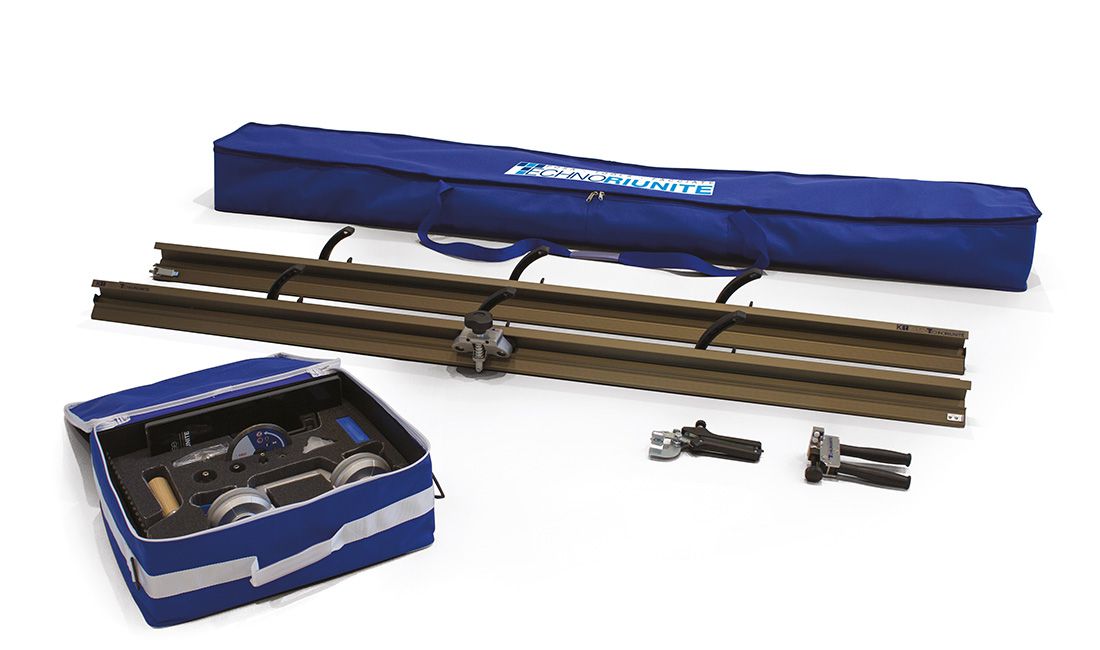

The ULTRA CASE and ULTRA CASE Plus kits contain all the instruments required for the correct application of the “ULTRA” slabs in the different stages: handling, cutting, making holes and laying.

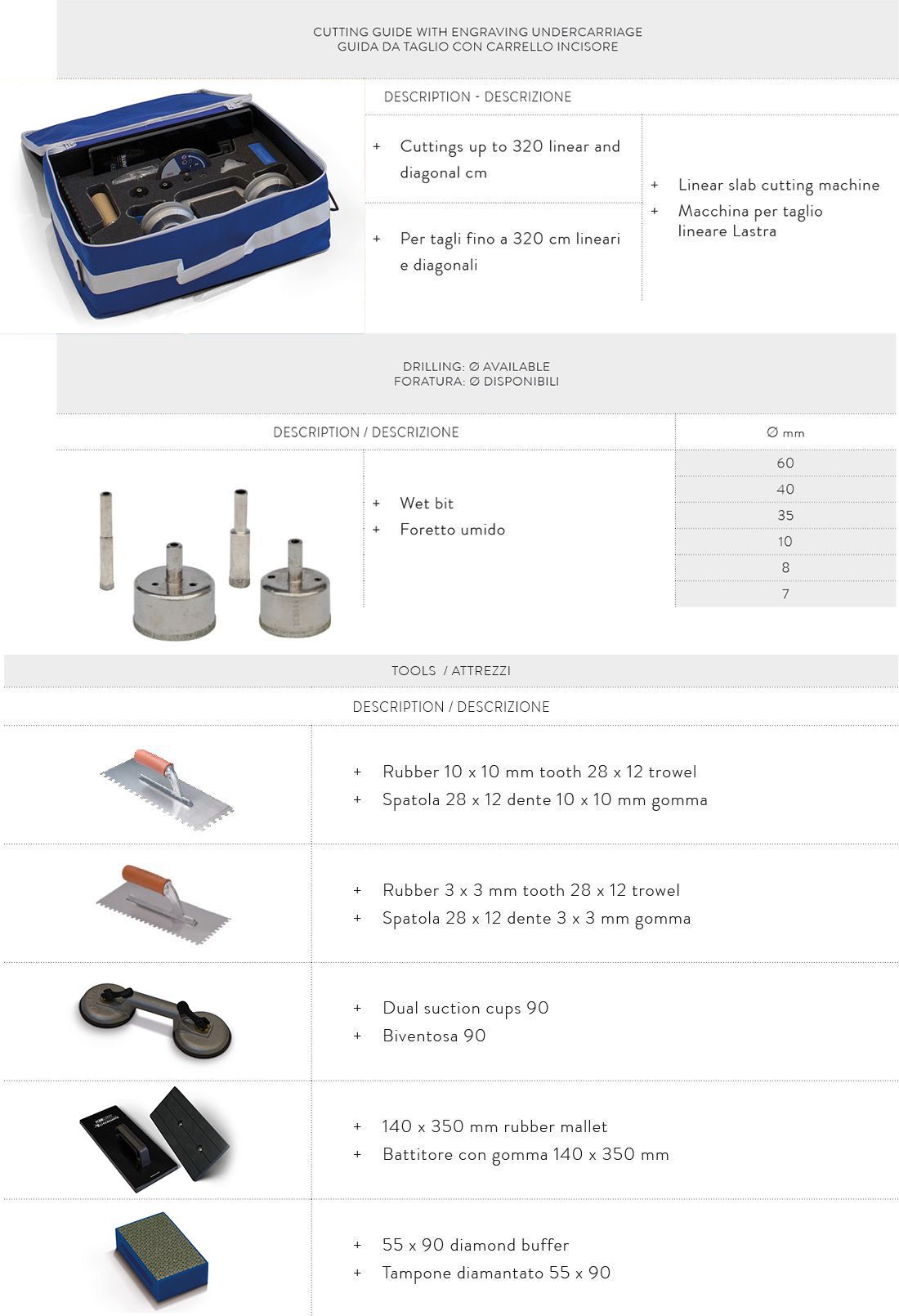

The ULTRA CASE kit comprises :

  • Cutting guide with cutting carriage for linear cuts of 150/300 cm.
  • Cutting pliers.
  • Diamond buffer.
  • 6 wet diamond core bits “cup wheel cutters” (dimension Ø 60 mm, 40 mm, 35 mm, 10 mm, 8 mm and 7 mm).
  • 3x3 mm square toothed trowel and 15 mm round toothed trowel.
  • Non-bounce plastic mallet 170x370 mm.
  • 2 double suction cups.

The ULTRA CASE Plus kit comprises :

  • Cutting guide with cutting carriage for linear cuts of 150/300 cm.
  • Cutting pliers.
  • Diamond buffer.
  • 6 wet diamond core bits “cup wheel cutters” (dimension Ø 60 mm, 40 mm, 35 mm, 10 mm, 8 mm and 7 mm).
  • 3x3 mm square toothed trowel and 15 mm round toothed trowel.
  • Non-bounce plastic mallet 170x370 mm.
  • 2 double suction cups.

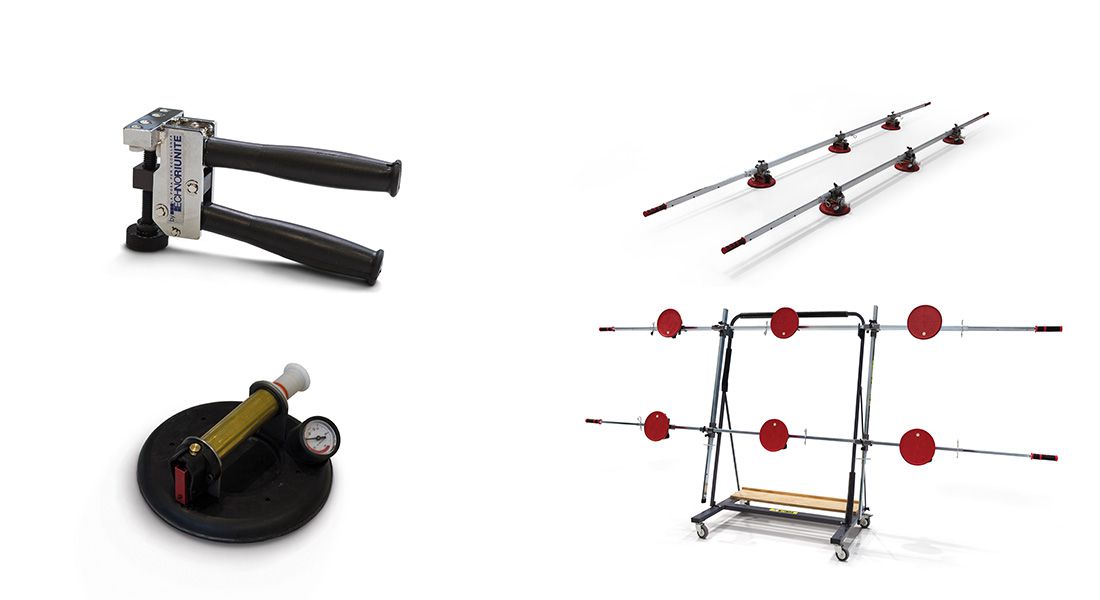

Handling frame with suction cups. On request, the levelling system can also be supplied (base clips, wedges and pliers for floors and wall tiles) which is strongly recommended for laying “ULTRA” slabs.

Ultra CaseUltra CaseUltra Case




—ACCESSORIES ULTRA CASE

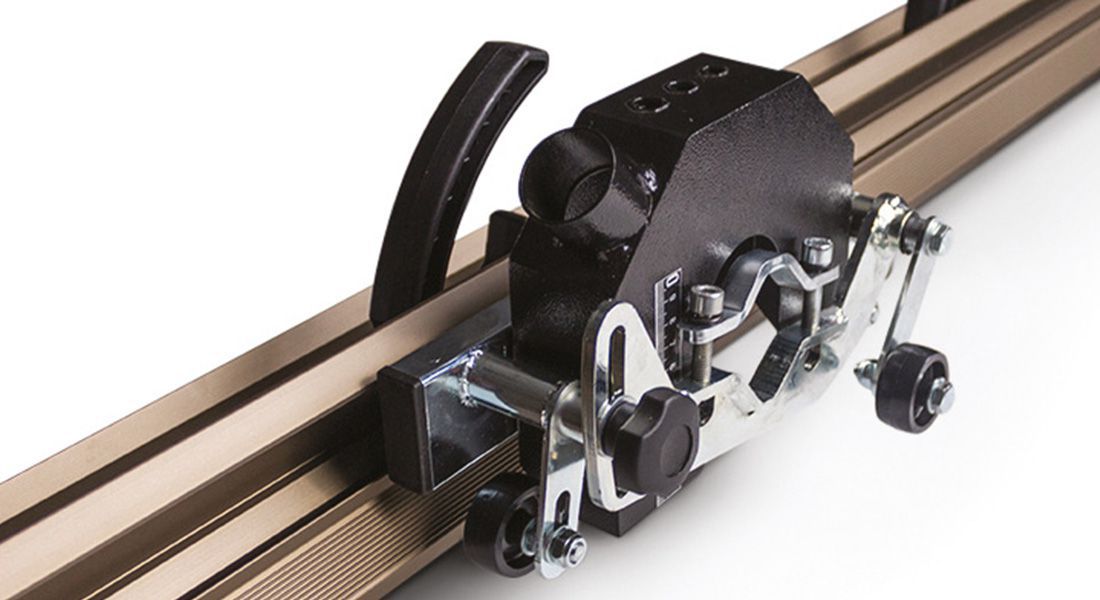

CUT LINEAR 90° PLUNGE CUTTING UNIT WITH ANGLE GRINDER

  • To perform particularly problematic cuts avoiding any risk of material breakage.
  • To be mounted on cutting guides (max cutting length: 426 m – 14.’).
  • Tilting movement (plunge cut) to adjust the depth of cut and to make cuts in multiple passes as well as to perform cut in the middle of the slab, square and rectangular holes.
  • Depth of cut: 25 mm (1”) with disc Ø 150 mm (6”); 15 mm (3/8”) with disc Ø 125 mm (5”)
  • Equipped with semi-universal attachment: compatible with the most popular brands and models of angle grinders.
  • Dry cut with diamond disc.
  • Provision for dust extraction.
  • Disc Ø: min 125 mm (5”); max 150 mm (6”).

Accessori Ultra Case



CUT JOLLY 35°/55° CUTTING UNIT WITH ANGLE GRINDER

Provided with tiling system to miter angle between 35° and 55°. To be mounted on cutting guides (max length of cut: 425 cm - 14’).

  • Dry cut with diamond blade.
  • Provided with clutch hose for dust extraction.
  • Depth of cut: 20 mm (3/4”) with disc Ø 150 mm (6”); 15 mm (5/8”) with disc Ø 125 mm (5”).
  • Equipped with semi-universal attachment: compatible with the most popular brands and models of angle grinders.
  • Disc Ø: min 125 mm (5”); max 150 mm (6”).

Accessori Ultra Case



KIT SAFETY: is a kit to create the retractable safety hook system for coatings with porcelain stoneware slabs.

DESCRIPTION: The retractable mechanical fixing device in stainless steel is a device to help hold, it is inserted before laying, and is then fixed to the wall with plugs or nails.

AREAS OF USE: Safety anchor for bonded façades, an outdoor coating system to secure façades fixed with adhesive. Positioned behind the tile, marble, artefact or product suitable for bonding to a wall. With the rise of large formats, the hook prevents slabs from falling off a wall in the event the adhesive fails.

APPEARANCE: Stainless steel slab with pre-set tab to insert on the back of the tile, after milling, with 2 brakes to prevent their falling. The perforated side allows the slab to be positioned against the wall with a nail or plug.

MATERIAL: Stainless Steel

DIMENSIONS: Dimension of the Small Slab: 120x40 mm thickness 5/10 mm Bore diameter: 9 mm and 10 mm Thickness: 0.5/0.10 mm

SURFACE TYPE: The product is greasy to the touch, we recommend cleaning before use.

ADHESIVE RECOMMENDATIONS: We recommend installing the Hook with Two-component Polyurethane adhesive.

ASSEMBLY DESCRIPTION: Insert the tab inside the slot, seal with suitable adhesive, let dry, and fix to the wall with a nail or plug.Flexible door device with angle grinder and diamond blade for construction site milling, indispensable to fix the retractable hook.

Accessori Ultra Case

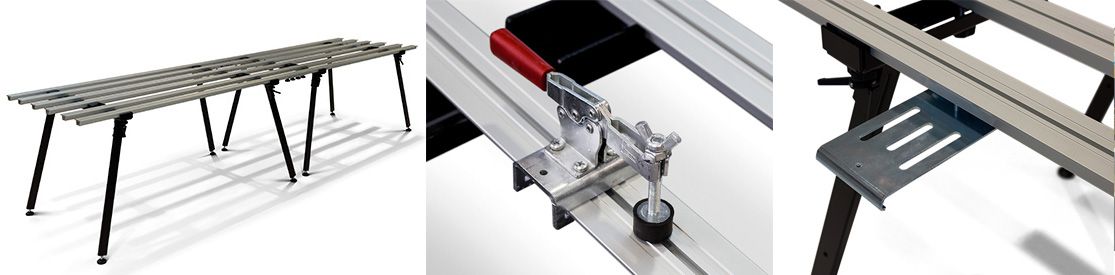

MODULAR BENCH

Easy to disassemble and once not mounted it has small dimensions. This make it easy to transport. Easy to mount. The steel structure and the worktop made of anodized aluminum profiles guarantee sturdiness and stability.
Legs provided with adjustable rubber feet. Provided with adjustable anodized aluminum profiles so to avoid to interfere with diamond disc if cutting slabs with angle grinder. Worktop dimensions: 180 x 90 cm (3’x6’). Height: 83 cm (32 3/4”), for 360x90 cm (11.8’x6’). Provided with special connection devices to join more bench so to expand worktop dimensions.

Accessori Ultra Case

KIT POLISH:

n.1 support and n.6 diamond resin polishing pads whit Velcro coupling for dry or wet grinding and polishing.

CORNER PROTECTORS

n. 4 pieces

CUT 11

is a screw cutter for the separation of slabs up to 11mm thickness. After engraving the slab using the cutting guide with engraving undercarriage Kit Case, start cutting placing CUT11 next to the line you have engraved. The progressive pressure exerted by the screw cutter will allow the linear cutting of the slab.
